Monday, 27 September 2021

Non-Slip Casting

I'm in a mood to finish off some projects which have been held in abeyance for too long.

One of them is the well wagon project which has been sitting waiting for something to represent the Durbar plate decking.

My original plan was to get something bespoke in etched brass which would help give strength and weight to the structure, and would be user-friendly if the wagon ever got added to my range of kits.

I'd sent off some design sketches but nothing as come of them - and I'm reluctant to nag or chase-up - so I've decided to try one of the alternative approaches I had in mind originally.

Years ago I bought a packet of very thin, etched brass plates, which I can't seem to find being sold anymore.

They weren't big enough to cover the whole lower deck of the wagon, and I don't have enough of them in any case.

What I can do, however, is use one of them as a master to make a mould and cast a number of copies in resin, which I can then join together to make a master for a large piece which does fit.

This is what I have done, and you can see the result in the picture at the top of the post.

You can still make out where the join is but I'm hoping it won't show up too much when the wagon is painted and perhaps given a bit of weathering too.

Next, I shall be making some smaller pieces for cover the slopes and the upper platforms above the bogie pivits.

This will mean that the wagon still probably be a little on the light side, still, but the solution will probably be just to run it loaded.


Saturday, 25 September 2021

The Carriage That Had The Last Laugh

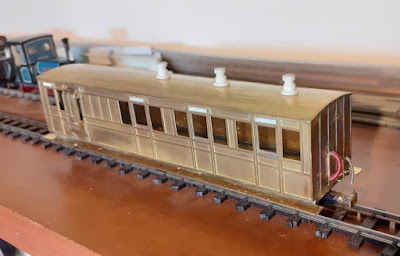

At long last we've got our hands on a set of etches for FR carriage 21, which we'll be doing up to represent the volunteer-built replica which entered traffic a couple of years ago.

This pair of Asbury carriages were rather basic compared to what Victorian passengers had become accustomed to with the 'bowsiders', and although apparently intended for tourist traffic other accounts say they were bought to be nothing more than bogie quarrymans carriages.

Sitting in one of the end compartments of the replica for just a few minutes while it was under construction at Boston Lodge, I soon appreciated how they developed this reputation for not being the most spacious and comfortable carriages, and I know I wasn't alone in wondering quite why some people were so keen to recreate one it its original form?

That was before Covid-19 came along, and suddenly compartment stock roared back into fashion!

Along with the other 'lock ups' 21 has become a mainstay of the FR fleet for the past two seasons and those who built it - while others looked on with a sceptical look - have had the last laugh.

As built there were never any dividers between the compartments, but these were hastily added as a Covid precaution before the start of the 2020 service.

Now it's been handed over to me to make the interior,  and I'm wondering whether I should make it with the plywood walls in place as our little miniature memorial to the pandemic?






Thursday, 23 September 2021

Rob's Bonnet

A day isolating in the 'Covid Cave' on Sunday gave me the opportunity to get the master and the castings for the new side doors on the bonnet of WHR diesel shunter 9 completed.


I think I'm pretty satisfied with how they've turned out.

I cast three copies (and one for luck) of the first master of just one set of the double doors, then joined them together - with an extra blank door on one end - to form a second master.

Once that had been used to make a mould I cast a few copies of this longer set and selected the best pair to use on the model.

When they had cured the spare door was cut from different ends - because they need to be a mirror image - and I've added some hinge details using fine styrene rod.

They're not that much thicker than the nickel silver etches which came with the kit prototype from RT Models and I'm confident they'll look quite effective on the finished model.

I think this can now be passed back to Himself to work out how to replicate the 'bull bars' style grill protection on the front.

Tuesday, 21 September 2021

Toast Rack Update

Tinkering has been completed on the scratch built Hudson toast rack replica 39 and it is about to move to the painting stage.


Himself has taken my resin cast body and added a a brass roof as well as finishing details such as the vacuum pipes, electrical connections and emergency stop apparatus.

It's had a trial run on (most) of Bron Hebog along with the 009 Society kit version which we are going to finish as the version of this type of carriage running on the WHHR. which is more correct to the kit.

The front one will be finished mostly in green and the rear one mostly in maroon.

Given that I was only working from photographs with measurements of the key dimensions of the Society kit when I started I'm pretty pleased with how it has turned out.



Sunday, 19 September 2021

Killing Time

In the previous post I said I had run out of excuses for not getting on with the doors on diesel 9, well, how prophetic those words turned out to be!

That very same day I somehow found myself - finally - among the millions testing postive for Covid.

As I am the only one in the household who needs to isolate, and because I have shut myself away for the duration in the room where I do all my modelling, there's no reason not to crack on.

Forget any idea that I shall be spending the whole ten days beavering away on models, though, because at the start of lockdown my employer issued us all with the kit to broadcast from home, so for most of these ten days everything is cleared away to turn the desk into a temporary news studio.

For this weekend, however, I have packed all that away and filled the empty hours with some casting work for customers and made a first attempt as a master for the door castings on the diesel's bonnet.

These are to replace some thin etched panels so I've made them out of 10" styrene and put a blank door on either side so I can use the castings that are produced with the door with the vent either to the left of the right.

This has been formed into a casting box and is curing under the RTV as I type.

For those who are curious about my health, I'm pleased to report that four days after testing positive my experience of Covid after being double-vaxxed seems no different to a winter cold, so far.


Wednesday, 15 September 2021

Doors Time

With the toast rack project passed over to Himself for the roofing and painting stage I've not got any excuses left for not tackling the doors on WHR diesel 9.

As you may have read in previous posts on this blog, the idea is to make this up from a test etch for a potential new kit from RT Models running on an adapted Farish 08 chassis.

Because it is a test, a few of the details will need to be altered before it goes into production, including the side doors on the bonnet which were not the same as the ones being carried by the WHR example based at Dinas.

In the kit these were meant to be metal overlays to be positioned on top of the perforated bonnet former.

I think I shall try to make a very thin masters out of styrene and attempt to cast copies.

Keep following the blog to see how I get on....

Monday, 13 September 2021

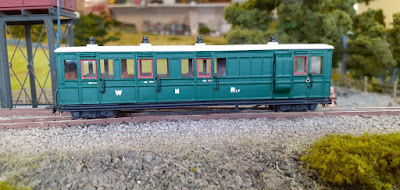

The Forgotten Carriage

It's possibly the affect of age, and a touch of confusion creeping in, but I was very surprised to discover recently that we didn't have a model of bowsider 18 in its current ornate Victorian livery.

The only one we have is one of our very first 009 models from around 30 years ago, built from a Langley brass kit, finished in the very simple two tone 'Mountain Prince' livery of the late 1980s.

(This model is not strictly correct because it has all the panelling etched in brass, whereas at this time number 18 was running with smooth panels along its midriff.)

We're going to fix this gap in the stock list and have bought in a Worsley Works body kit which Himself is busy soldering together.

That's the easy part - the hard part will be the painting.

Monday, 6 September 2021

A Big Relief

Wiring and control panel work wasn't the only thing happening on the 'test track' at the weekend.

While Himself was playing around with the soldering iron I set to work on another Metcalfe kit, this time for the main building of the station.


This one required quite a degree of kit-bashing because it is not to be positioned on the main part of the layout - it's too tall - but built in half relief and placed in the gap between the edge of the layout and the wall.

Given the depth of the gap it's not so much half-relief as three-quarters-relief.

When the layout is folded away this building - and half the platform - will remain in place sitting on top of the shelf which the layout rests on.

With the layout down you should hardly notice the gap.

Well, that's the theory, anyway.


Adapting the kit was fun but made more challenging by the way the building is made up of four blocks, and each one had to be thinned by the same amount to make sure that when they were fixed together all the roof parts still connected as they should.

The front looks quite normal, as it should, and the rear - which doesn't have the windows installed because no one will ever see it - does quite a convincing turn as an abandoned post-Beeching shell.


Since these pictures were taken it's been completed with the roof and all the trimmings and I'm pretty pleased with the result.









Sunday, 5 September 2021

We Have Control

Most of yesterday was spent installing this beauty.


Yes, you're right, it is probably overkill for a 'test track' but I did say we were doing this properly!

Himself spent the last week building one of his by now standard control panels which we also have on Dduallt and Bron Hebog.

This one features a colour-coded track layout (in Dymo tape) which shows isolating sections, and includes triple-pole section switches for 'cab control' on the main lines, simple switches for isolating sections in sidings, centre-spring switches for point control and push button route selection for the three-way points in the depots.

Two panel mount Gaugemaster controllers will be placed in the white space on either side in due course.

Wiring this lot up, however, could take some time, especially because it's being designed to be removable, which is complicating things a lot.

The narrow gauge circuit, when it's built, will be controlled from a smaller separate panel.



Thursday, 2 September 2021

Mesh Door Solution

You can call me a hypocrite if you like, and I won't disagree, but after many years of - lets call it scepticism - about 3D printing the new fangled technology has proven to be the best solution to the problem of how to recreate the small mesh safety doors on the Hudson toast rack carriage 39.

Even better was that I didn't have to do anything to get them, having been offered eight spares from fellow NG modeller, Colin Lea.

As printed, they were just under a millimetre too wide for the gap between the body panels - if it was the 009 Society / Dundas kit it would have been even more so - but it proved possible to file them carefully at either side to fit snugly.

You can probably make out in the picture that I have made and fitted the seat benches and the backrests.

Now it's just about ready to pass to Himself to add the brass bits and get it painted.

Cheers Colin!


Monday, 30 August 2021

Big Shed - Little Shed

The previous post was all about me building a Metcalfe loco shed kit for the 'test track' project in the modelling den.

This particular kit comes with an additional, smaller, building in a similar style which is billed as a workshop.

It occurred to me it was ripe for conversion into a wee shed for a narrow gauge loco on the 009 part of the layout - sorry - 'test track'  (almost got caught out there...).

The first decision was which of the two end walls to cut into to form the shed opening.

As printed, the workshop comes with two doors, one and the side and the other in one of the ends.

I decided that for a shed a door at the side made more sense than an end-on one, so this was where I made the cut.

The other big consideration is how to maintain the building's strength?

As designed, this comes from a solid floor which the four walls are folded around and glued to, but that wasn't an option if I wanted to use it as a running shed.

So what I did was cut out most of the middle section of the floor and add strengthening right angle sections from some of the spare card in the kit which, I hope, will keep the walls straight.


As the first picture shows, it's just about the perfect size for a small NG tank engine - no Garratts in here!

Thursday, 26 August 2021

Consistency Is Key

For the last couple of modelling sessions I've been working on one of the key buildings for the test track - the standard gauge steam locomotive shed.

You probably recognised it straight away as a Melcalfe kit, and it may seem strange that someone who's made something of a fetish of scratch building should be taking the easy way out.

Primarily it's because time is of the essence.

I want to get this 'test track' done before my son gets fed up of waiting or loses interest in model railways.

Also, at lot of the stock he'll be running is getting on for 40 years-old, and some of these Metcalfe kits are arguably of a higher standard of detail!

And the final reason is that I have always believed that consistency - or uniformity, if you like - is one of the most important factors in how a layout looks.

The Metcalfe range has the advantage that we can quickly (and inexpensively) populate the layout with the full range of railway structures, and create a townscape around it, and they'll blend together nicely.

So often I've seen layouts at exhibitions - mostly ones built by clubs rather than individuals - where you'll see a some stunning stock or structures placed alongside other stuff that is nowhere near the same standard, and it sticks out like a sore thumb and spoils the effect.

On the other hand you can get a layout where there's nothing particularly outstanding, but everything is of a good, consistent standard, and the whole thing looks so much better for it.

(For those wondering, the engine shed isn't finished yet, but I won't be adding the smoke stacks, because they will come perilously close to the high limit when the layout is folded away.)

Monday, 23 August 2021

Learning Curves

Due to popular demand - well, a couple of comments, anyway - I thought I would post an update on the 'test track' project.

The standard gauge part is now almost complete as far as tracklaying is concerned, but there is no juice connected to any of it yet.

Despite being to all intents and purposes a 'train set' with the design of the tracks we've tried to make it to a reasonably high standard using flexitrack and medium/long radius, electrofrog points, and despite appearances none of the curves are any tighter than set track radius 2 at any point.

It's been a great learning curve for me because it's the first time I've laid track.

We began with a day-long session with Himself as the tutor, when we got most of the station area completed, and I've been taking it on from there solo, with occasional remote assistance by phone message - remind me how many insulated joiners this point needs again??

It's been a very enjoyable, and completely absorbing, process, although I can't pretend that it's always gone right first time.

Quite often on the large curves I've stood back to admire my handiwork, or pushed a carriage along to check clearances, only to decide that I could do better and pull it up and try again.

As I have written previously, this will be a dual gauge set up, and although the narrow gauge element was included for the purposes of having a test track at home, I've not been able to resist attempting to justify its existence.

Therefore, at one end of the goods yard there is a raised siding where I intend to create a coal transhipment point from standard to narrow gauge.

Image in Peter Johnson's Vale of Rheidol book published by Pen and Sword

I envisage something which is a blend of the arrangements on the Vale of Rheidol (above) but including chutes in the style of Minffordd Yard.

Picture by Rob Fisher, on Fesitpedia.org.uk

Quite what narrow gauge rolling stock will need to be 'tested' is as yet unclear.

Saturday, 21 August 2021

Domestic Duties

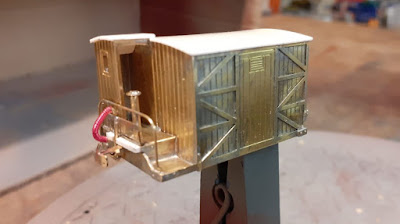

Himself has been putting the finishing touches to a little side project to make a track cleaning wagon, which will be handy for the hard-to-reach areas in the centre of Bron Hebog.

This was made up from a Nine Lines L and B bogie van we ended up with - I can't remember how - and finished in the current FR infrastructure livery to try and make it blend in a little.

I'm not fond of this colour scheme, I think it looks dreadfully dull, and I might have thought you would wish vehicles that are likely to be in the vicinity of personnel working on the track to stick out like a sore thumb, but what do I know?

It makes a nice little model, and if we ever get back to exhibitions then it will probably make a few circuits during the course of the day to try and keep everything running smoothly.

It's packed with so much lead weight that it needs to be topped and tailed with two locomotives.

Wednesday, 18 August 2021

Two Slices

I've been getting very behind in my blogging again.

It's not that there's no modelling going on, but the lack of updates here is because I have been lured back to the dark side of standard gauge and have spent much of my spare time in the last couple of weeks working on the tracklaying on the dual gauge 'test track' in the study.

Officially, this is a more practical solution for my son's OO 'train set'.........

I have stayed away from posting updates about that here because you come to read about narrow gauge modelling, right?

I did manage to get some FR work done immediately after my return from a few days in Wales  - the first time at the railway since 2019.

With the arrival in the post of a pack of fresh Hudson bogies I have trial-fitted the chassis in the toast rack carriage 39.

The task which am putting off - and which the OO track is providing an ideal excuse for - is trying to find a way to represent the tiny mesh safety doors fitted to this carriage.

All suggestions welcome...



Wednesday, 4 August 2021

Toast Rack Update

I apologise for things being a little quiet on the blog in recent weeks, which is on account of a number of factors including holidays, effort on constructing the dual gauge home 'test track', and a secret project that I can't tell you about.

All of which means that there hasn't been much progress with my scratch built model of FR Hudson 'toast rack' replica 39 until the other day when I cut out and test fitted a styrene floor / chassis for the body which has been glued together.

At the moment I only have the one pair of bogies - which I've stolen off the 009 Society kit - so I can't glue the floor into place and finalise its position and the running height until they are both on the rails and I can accurately compare them.

I have a pair on order but it's likely to be more than a week until I receive them.

Wednesday, 14 July 2021

Tall Slim Aussie

While I was away Himself was making progress on the test etches from RT Models for the Dinas shunter number 9.


At this stage the bonnet and cab are just resting on the footplate, and in the case of the bonnet it's just a basic former which will need some thin door and grill pieces scratch built on top.

What surprised me was how comparatively thin it appears, probably on account of the cab being so tall.

The most important developments have been down below where the chassis has had its Farish fly cranks replaced with brass ones from Meridian Models and the jackshaft drive has been grafted on.


Himself has decided not to use the replacement keeper plate supplied with the kit but to insert a brass tube through the rear of the chassis to hold the unpowered axle.


Its been reassembled and test run on the layout.

The next stage will be for me to do something with the bonnet.

Monday, 12 July 2021

Another Round Of Toast

Having embarked on my project to scratch build models of the FR / WHHR Hudson 'toast rack' carriages, on account of the 009 Society kits being sold out, imagine my surprise when one of them turned up in the post at Himself's place.

As luck would have it this appeared just before I began any serious work on the model of the WHHR example, which regular blog readers will know has its L-section strapping the opposite way - the correct way - round compared to the replica built for the FR by Winson Engineering in the early 1990s.

While I was away on holiday in the West Highlands last week, Himself put together the kit, which includes very neat etchings for the protective hoops on the side, which I scratch built using brass wire on my model.

In the photo you can see it posed next to my first attempt at scratch building FR carriage 39 which I did from guesswork more than 20 years ago - it wasn't such a bad effort.

Wednesday, 30 June 2021

Australian Adaptations

Himself has begun making the alterations to the Farish 08 chassis which will power our model of No. 9 - the large, yellow, ex-Australian shunting diesel at Dinas.


In the search for a more authentic look, with chunky fly cranks, he's replacing the plastic extensions which create the false outside frame effect on the 08 with a couple of packets of brass cranks we had in our strategic reserve of bits and pieces.

These were once produced by Meridian Models (item MP24) but so far as we can tell are not available at the moment - which is a shame because they're very handy to have.

They are fitted over the stubs of the overlong axles on the wheel sets on the chassis.


Quartering is as simple as it can ever be because you can line up the crank with the inset in the wheel where the original plastic cranks were positioned.

The jackshaft drive will be created using the clever replacement chassis keeper plate supplied by RT Models and employing a fourth set of these cranks.


Friday, 25 June 2021

Adventures In The Spare Room

Many months ago I mentioned the idea of a home test track and at last it is coming to fruition.

The pretext is to provide something semi-permanent for the youngest generation to mess around with the antique collection of OO models, which have been faithfully hoarded by Himself since the family moved house and switched to narrow gauge modelling over three decades ago.

The location is my spare room / study, which occupies a rather narrow extension on the side of the house and is only five and a half foot wide.

We're also designing it to fold away into a storage frame, because I doubt I could have got 'planning permission' for something which took up half the room on a full-time basis.

Over the course of a couple of days Himself and I have knocked together an 8 x 5 baseboard using a sheet of thick ply - with some cunning slicing and dicing -and a bundle of 2 x 1 lengths.

We've yet to tackle the really difficult bit which is getting it hung on the wall!

I wouldn't normally recommend a flat baseboard ,but it is only intended as a glorified train set, rather than a layout.

Having put in all this effort, of course, I'm demanding something back and have negotiated running powers for an element of narrow gauge to be included on the track plan.

Officially this is purely for the purposes of testing rolling stock under construction at the other end of the room.

However, I would be lying if I denied I'm not a little bit excited at the prospect of having a layout of some kind in the house for the first time since I was a teenager....

Wednesday, 23 June 2021

Hooping For The Best

For what appears to be such a basic and insubstantial carriage it's remarkable how much fiddly work is involved in scratch building a model of FR 'toast rack' carr 39.

Last night's task was to begin bending and fitting the distinctive hoops at the side of these Hudson carriages.

This involves forming sets of U shapes of three radii out of 0.45 brass wire and carefully fixing them in position.

Thank goodness for 60 second superglue!

One down, one to go.


Sunday, 20 June 2021

Painted Pickering Carriage

And just like that, a few days later, a new carriage takes to the rails.

Himself spent the week putting the finishing touches to the Pickering brake replica which looks quite the part posed at the platform at Beddgelert station.

When the body side is brass, as this one is, it makes painting the drop lights neatly especially challenging.

I'm also very pleased with how the resin cast lamp pots on the roof look now they're been picked out in black with the base ring matching the off-white roof.

What really sets it off, of course, is the W H Rly lettering.

This has been done by transfers, rather than the slightly raised metal letters on the real carriage, but at this scale I think it hardly matters.

I look forward to seeing it as part of a WHHR rake running behind Russell, and hopefully it won't be too long before that scene happens in real life.



Monday, 14 June 2021

Painting The Pickering

With the construction phase done Himself is putting the Pickering brake carriage through the paint shop.

After being sprayed with primer it has now been treated to four coats of gloss green before the tricky task of picking out the window droplights in a woody brown.

I'm still quite satisfied with how the third generation lamp pots look.

Hopefully that won't change when they're painted black against the light grey roof.

Thursday, 10 June 2021

Non-Identical Twins

I suppose in a way my naivety is quite touching, but I really shouldn't have been surprised when my plan to make one master for the sides of the FR and WHHR Hudson toast rack carriages hit a snag.

A correspondent informed me that there is a clear difference in the pair in the orientation of the upright L girders on the sides.

While the WHHR rebuild has them as per the original carriages the FR replica - built by Winson Engineering in the 1990s - has most of them facing in the opposite direction.

I am also informed that this is not what was designed, however, that is what was delivered!

Armed with this unfortunate information my options were:

a) build separate masters for the two carriages

or

b) try to slice off the uprights to make a generic master to which I could use to cast incomplete sides and add the uprights separately for each carriage.

I've decided to go for the second option.


This now looks a lot more basic, although I have been able to add on the footboard and some resin rivet head transfers along the frame.

Hopefully cutting and sticking on the girders will be much less hassle than having to make a whole second side from scratch.


Tuesday, 8 June 2021

Keep It Clean

A while ago Himself was given a gift of a Nine Lines Lynton and Barnstaple bogie brake van.

Obviously enough this is not our prototype, so the question was what to do with it?

While dropping in at his place at the weekend he showed me the result of some tinkering to convert this into a track cleaning wagon - which is a very handy thing on a layout as large as Bron Hebog with sections which are beyond the reach of a human arm.

The business end of the wagon is this pad slung beneath the chassis, covered in thin cloth, which rubs along the rail tops as it is pushed / pulled around the layout.

On any mobile track cleaning device you need some way of keeping this in contact with the rail, which in this case is done with a spring pushing it downwards from the bottom of the wagon.

The spring he used here is a relic of his former career as a piano tuner, and is part of the mechanisms he used to fettle as a side hustle.

The critical thing is to make sure the spring is not too strong to push the wagon off the rails, and for this reason the inside of the van is heavily weighed down with lead.

So heavy, in fact, that it needs two engines to top and tail the wagon to get it up our hill!


Sunday, 6 June 2021

Hot Toast

It's been an ambition for a while to get a second model of Hudson 'toast rack' carriage 39 in the fleet, wearing its Col. Stephens green to match many of the other vintage carriages.

Our existing model is one I scratch built in styrene probably the best part of 25 years ago in its original red and ivory colour scheme.

As well as the FR one we could do with a third model to represent carriage 42 on the Welsh Highland Heritage Railway.

So when I heard the 009 Society had produced a run of their exclusive, members-only, kits for the first time in many years I thought that would be the ideal opportunity to get these models built.

Alas, it appears they have sold like hot cakes - or more like hot toast? - and by the time Himself obtained a login for the members' section of the shop they'd all gone!

So rather than wait for an announcement about if or when there might be another production run, I've decided the best thing to do is to make a pair myself.

I've done it before so it won't be difficult.

I'm going to make up masters for the sides and ends and cast copies in resin.

A friend, who got in ahead of us and bought a handful of the Society kits, kindly helped me out with a few measurements and after a couple of hours work last night I've got this far.

Just like the Society kit the semi-circle hoops which are such a feature of these carriages will be added on by hand, and I've still got the footboard and the triangular underframe to add - plus bolt heads / rivets - before it is ready to make a mould from.

The ends will be slightly more involved as the FR and WHHR examples are different - or at least they were in the period I'm going to model them - 39 had many more horizontal slats before it was taken in for a heavy overhaul ahead of the 2021 season.




Friday, 4 June 2021

Pot Luck

Or perhaps more a case or persistence pays off.

I think we're both satisfied with the result of version 3 of the lamp pots for the Pickering brake replica.

They are without a doubt the biggest pain in the backside I've had on the modelling bench for quite a while but I think the result of many weeks tinkering will be worth it.

You'll also notice Himself has added the air and vacuum pipes, this being a dual braked carriage, and a very pragmatic decision by the WHHR which is to be applauded.

The long, sweeping rain strips have also been soldered onto the roof.

It's details like these, and the styrene ventilation hoods above the doors, which really make the difference on these Worsley scratch-aid bodies.

Wednesday, 2 June 2021

Benches In

Today's update is to show you where I've got to with the interior for the Pickering brake.

As carriages go this is a very simple one with only three compartments and basic bench seats.

The real ones - as you may know - are made up of horizonal slats, but I'm not motivated enough to try to recreate that when you won't have a hope of seeing them inside.

Same goes for the vertical boards on the compartment walls - I'll be quite content with plain panels as long as they're the correct shade.

What I am going to be fussy about is getting the lamp pots to look right, and in the background of the picture you'll see a tiny styrene box filled with RTV rubber.

Under there is my third prototype!

Having seen the pictures of the carriage being delivered to Gelert's Farm it's obvious that I need more of a stacking rings effect, so this latest effort uses a smaller diameter tube for the very top section.

Once the rubber is cured I can cast a few and see whether I've cracked it at last?

Thursday, 27 May 2021

Twin Tanks

Now the Covid rules have changed for (almost) all of Scotland we are allowed to poke about inside each other's houses once more, and I've had the chance to inspect what Himself's been up to in his den.

A project I haven't featured on the blog for quite a while is a number of 3mm scale kits he's building for the Engineering Consultant.

This pair of ex-GWR 2-8-0 tanks are made from different kits (sorry, I can't remember what they are) and represent two varieties, the 42XX and the 5205 classes.

Swindon aficionados will be able to tell you all the differences, starting with the obvious one which is the outside, or not, steam pipes.

They do look really rather good and remind me again what an attractive size standard gauge 3mm scale models are.
